Fabrication & Mounting Structures

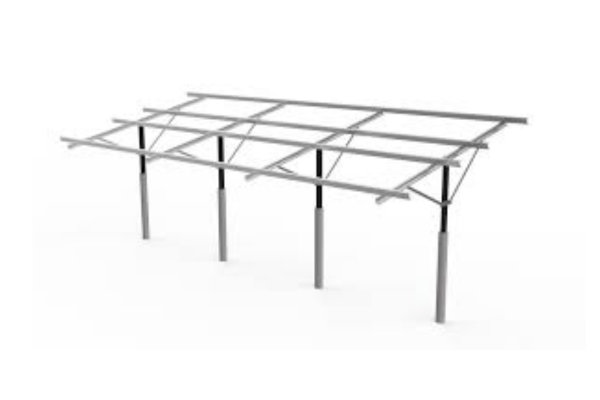

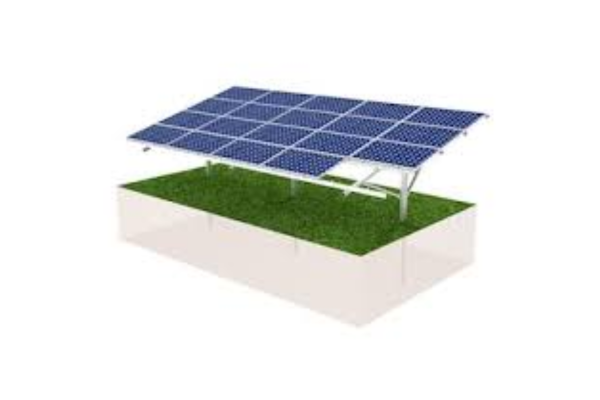

Fully welded MS/GI hot-dip galvanised ground-mount structure. Suitable for open land, farmland and utility-scale solar plants. Designed for 10°–30° tilt, single/double row, can accommodate any panel from 300W to 700Wp. Pile-driven or concrete anchor foundations available. Complete structural drawings and load calculations provided for DISCOM approval.

Hot-dip galvanised welded structure for concrete flat-roof installations. Tilt frame design 10°–15° for maximum yield in India. Ballast block or chemical anchor options to avoid roof penetration. Distributed load design keeps structural load well within RCC slab limits. Supplied pre-cut and pre-drilled for fast site assembly.

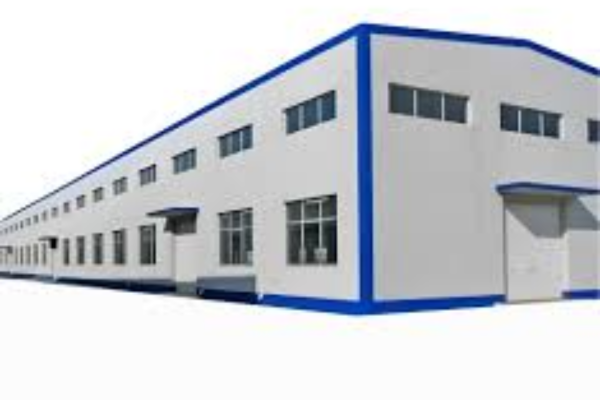

Specifically designed for factory and warehouse GI sheet roofs. Clamps directly onto the existing Z-purlins or C-purlins of the shed structure — no roof penetration, no leakage risk. L-feet and clamp assembly in SS 304 / HDG GI. Accommodates panel tilt parallel to roof slope. Widely used across Nagpur and Mumbai industrial zones.

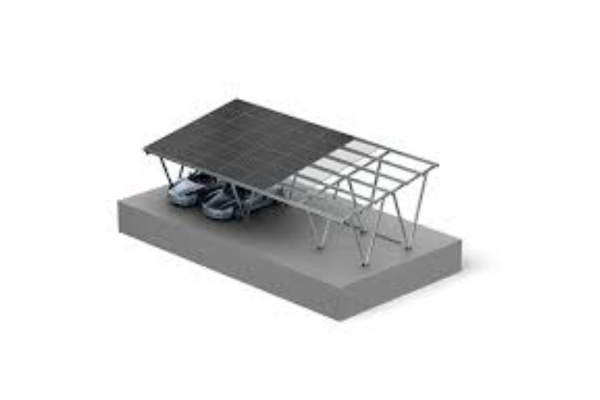

Heavy welded GI column-and-beam carport structure that doubles as covered parking and solar generation. Available in single-row (cantilever) and double-row (T-post) configurations. Column spacing 5.5m, accommodates 4 to 24 cars per row. Integrated cable management channels and optional EV charging point conduit. Custom height 2.8m–4.5m clearance.

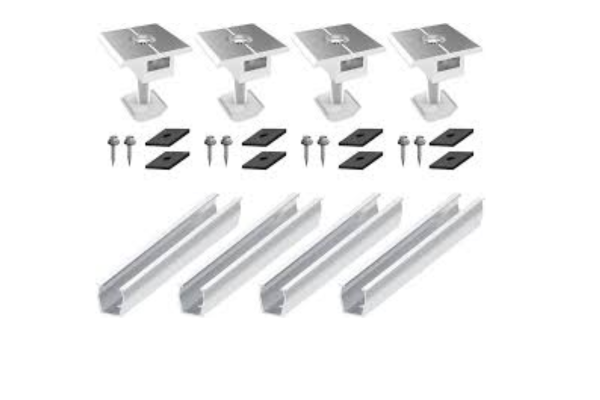

6063-T5 aluminium extruded rail system for residential and commercial rooftop solar. 40×40mm and 40×60mm rail profiles, anodised silver finish. Complete kit includes: rails, L-feet, mid-clamps, end-clamps, splice bars and SS 304 hardware. Suitable for RCC flat, Mangalore tile and metal sheet roofs. Light weight allows easy single-person handling on rooftop.

Pre-galvanised steel C-rail and Z-rail system for heavy commercial rooftop installations. Higher load capacity than aluminium — ideal for large commercial 50kW–500kW systems on industrial shed or RCC roofs. Comes in 4.2m and 6.4m standard lengths with punched slots for flexible panel spacing. Robust bolt-and-nut assembly with anti-theft locking capability.

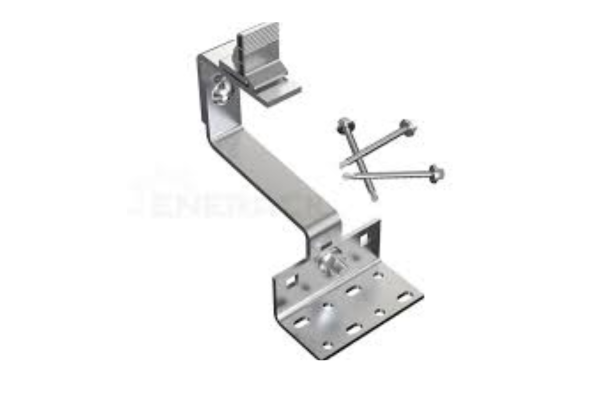

Stainless steel 304 rafter hook system designed specifically for Mangalore clay tile, concrete tile and corrugated sheet roofs. Adjustable hooks fix to rafters below the tile without breaking them. Aluminium 6063-T5 rails clip on top. EPDM rubber seal on every hook prevents water ingress. Perfect for residential homes with sloped roofs in Maharashtra, Goa and coastal regions.

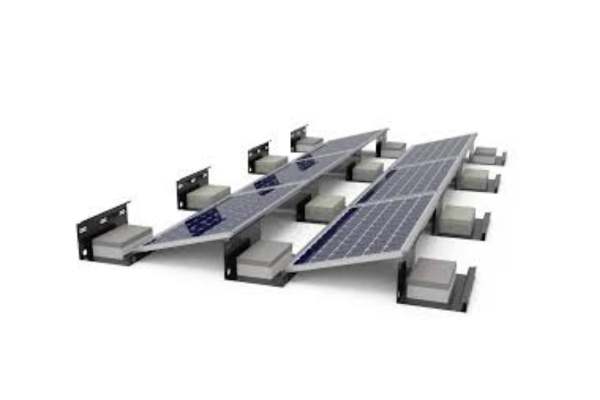

Factory pre-fabricated, numbered and bundled flat-roof solar structure. All components are drilled, punched and painted / galvanised at factory. On-site assembly requires only spanners — no welding, no cutting. Modular design allows easy system expansion. Supplied with installation manual and assembly drawing. Ideal for 5kW to 500kW rooftop projects requiring fast deployment.

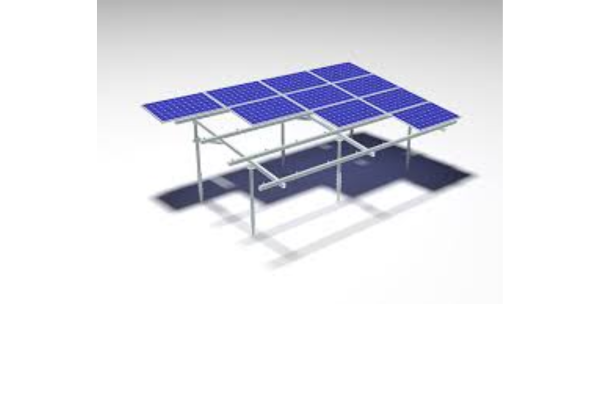

Modular bay prefabricated ground-mount structure for utility and agricultural solar. Each bay module covers 2 rows × 20 panels. Factory-welded sub-frames arrive ready for pile insertion. Hot-dip galvanised to 85μm, all holes pre-drilled. Screw pile or concrete pier foundation options for different soil types. Designed for India's wind zones 1–4 per IS 875 Part 3.

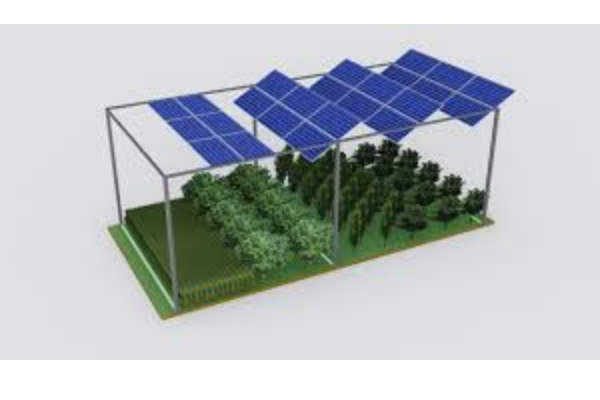

Elevated prefabricated structure for agrivoltaic (agri + solar) installations — panels mounted at 3–5m height allowing farming underneath. Suitable for PM-KUSUM Component-A and agri-solar government schemes. Wide column spacing 6–8m minimises shadow on crops. Designed in compliance with MNRE agri-solar guidelines. Complete structural and shadow analysis report provided.

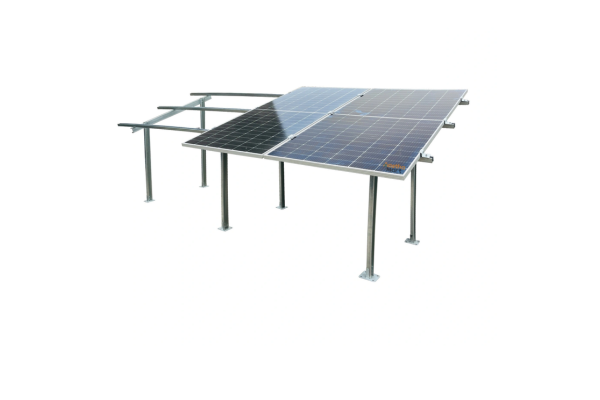

C41 × 2.5mm pre-galvanised steel C-channel structure for small residential and commercial rooftop solar up to 30kW. Slotted holes on flanges allow quick panel and clamp positioning. Delivered pre-cut to project length. Lightweight — easy rooftop handling without crane. Ideal for bolt-together installation on RCC flat roofs and industrial sheds. All hardware in SS 304.

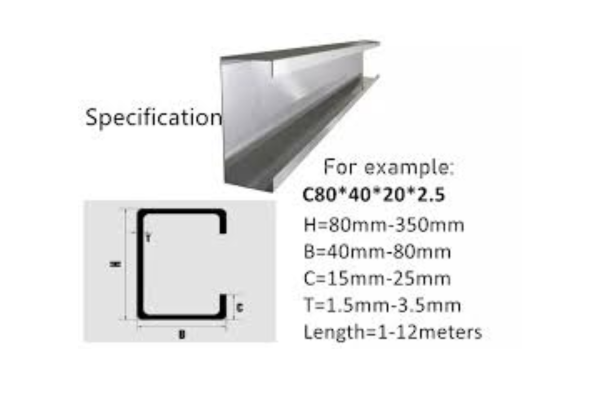

C80 × 4mm thick hot-dip galvanised heavy channel for large commercial rooftop and ground-mount solar structures. Used as primary rafter and purlin members in welded/bolted hybrid structures. High section modulus handles long spans up to 6m between supports. Punched channels allow bolt connection without drilling on site. Suitable for systems 50kW to 500kW and above.

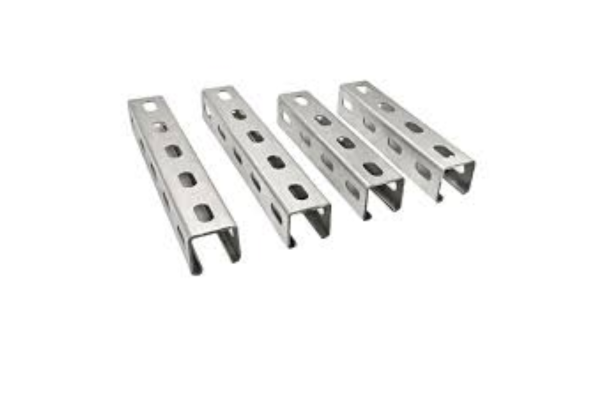

P1000-type 41×41mm inward-lip strut channel (Unistrut / Gripple style) used as solar panel rail and secondary structure member. Continuous top slot accepts hammer-nuts for infinitely adjustable panel clamp positioning — no drilling on site. Pre-galvanised or powder-coated finish. Widely used for small rooftop, BIPV, floating solar and carport secondary framing.
